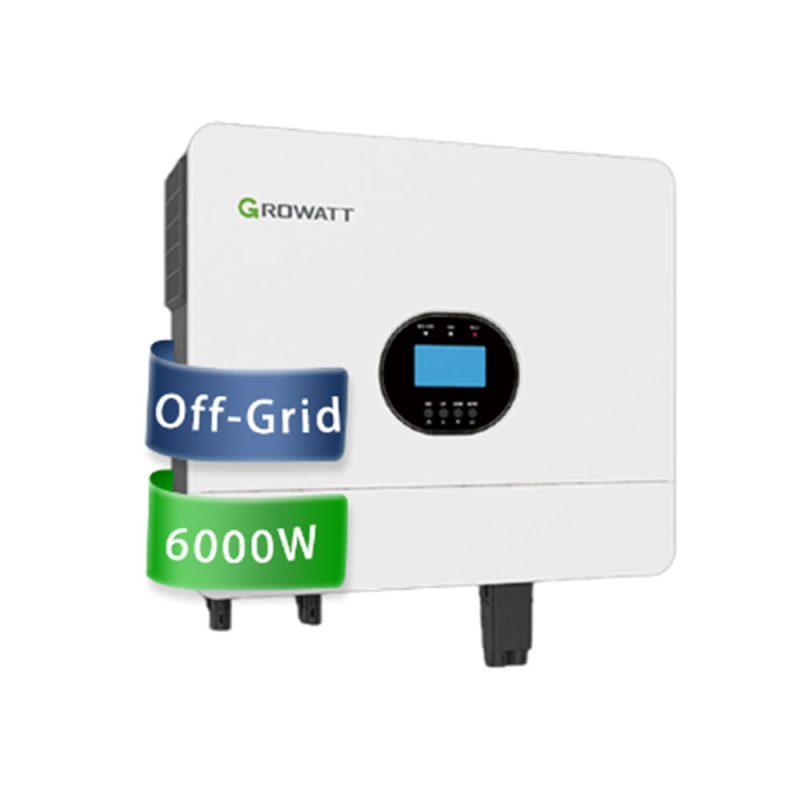

Growatt SPF 6000 ES Plus Inverter
⚡ Electrical Specifications
-
Rated Output Power: 6000 W (6 kW)
-
Peak Power: 12,000 W
-
Output Voltage: 230 V AC (Single-phase)
-
Frequency: 50/60 Hz
-
Power Factor: 1.0
-
Maximum Efficiency: 93%
-
Output Waveform: Pure Sine Wave
-
Battery Transfer Time: 10 ms (max 20 ms)
-
Battery Voltage: 48 V DC
-
Battery Type: Lithium or Lead-acid
-
Battery Charge Current from Grid: 80 A
-
Battery Charge Current from Solar Panels: 100 A
-
Solar Input Voltage Range: 120 – 450 V DC
-
Solar Open-Circuit Voltage: Max 500 V DC
-
Maximum Solar Input Power: 8000 W
-
Number of MPPTs: 2 (each with max input current 16 A)
-
MPPT Input Voltage: Max 500 V DC
-
MPPT Input Current: Max 16 A per MPPT
-
Total Solar Input Current: Max 32 A (2 strings × 16 A)
🛠 Mechanical Specifications
-
Dimensions (W × D × H): 460 × 395 × 132 mm
-
Weight: 13.5 kg
-
Protection Rating (IP): IP20
-
Operating Temperature: 0 – 55 °C
-
Relative Humidity: 5 – 95%
-
Maximum Installation Altitude: 2000 m
🔌 Key Features
-
Dual AC Input: Supports grid and generator input with built-in transfer switch
-
Parallel Capability: Up to 6 units can be connected in parallel to increase capacity
-
Quick Installation: Plug-and-play solar panel terminals
-
Smart Monitoring: Remote monitoring via WiFi or GPRS
-
Dust Protection: Dust filter for harsh environments
-
Adjustable Input Priority: Can set priority for grid or solar input
-
Battery-less Operation: Can operate with or without a battery when connected to grid or generator
Product Attributes
This product does not have any attributes
Call for price inquiryContact us
Description
The Growatt SPF 6000 ES Plus is a hybrid/off-grid inverter that can simultaneously operate with solar panels, the utility grid, and batteries. This single-phase inverter delivers a rated power of 6 kW, making it an excellent choice for residential and small commercial applications.
It has a 48V battery input and comes with a 100A MPPT solar charger, allowing direct charging of 48V lithium or lead-acid batteries. With dual independent MPPT trackers, the inverter optimizes solar generation even when panels are installed at different orientations or under varying light conditions. The maximum solar PV input capacity is around 8 kW.
A key advantage of this model is its flexibility: it can charge batteries from both solar and the grid (or a generator). It can even operate without batteries, supplying loads directly from solar and grid power. The inverter also supports high surge power (up to twice its rated output for a few seconds), enabling smooth startup of power-hungry appliances.
The SPF 6000 ES Plus also supports parallel operation of up to 6 units, making it possible to scale up the system’s total output when more power is required.
For connectivity, it includes RS485 and CAN ports for communication with smart batteries, as well as options for WiFi or GPRS modules for remote monitoring and control.
In summary, the Growatt SPF 6000 ES Plus is a complete energy solution:
-
Supplies solar power during the day,
-
Charges batteries simultaneously,
-
Provides backup power from batteries or a generator at night or during outages,
-
Manages all power sources intelligently.
