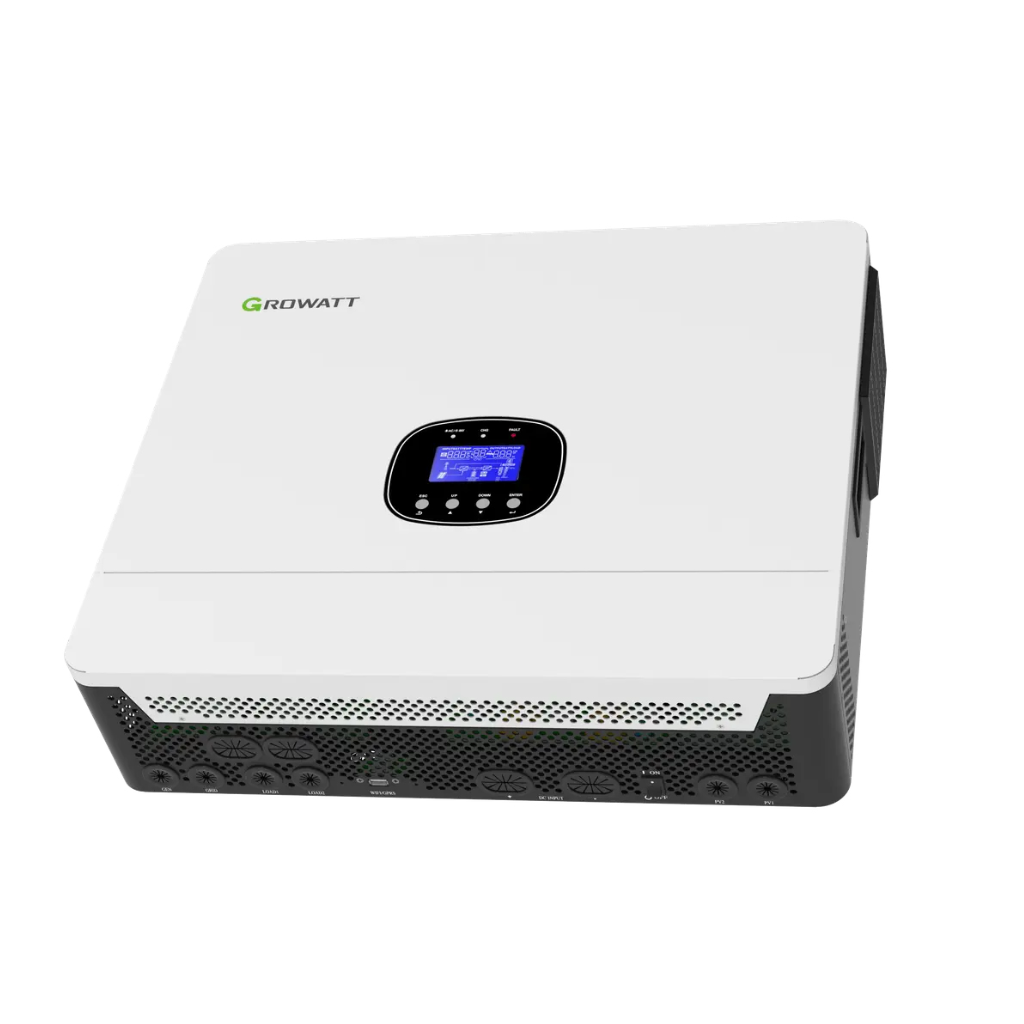

Growatt SPE 8000~12000 ES hybrid solar inverte
⚡ Electrical (AC) Specifications
-
Output Power Options: 8 kW, 10 kW, and 12 kW
-
Output Voltage: 230 V AC
-
Output Frequency: 50/60 Hz
-
Maximum Output Current: 52.17 A
-
Power Factor: Adjustable up to 1.0
-
Nighttime Power Consumption: <1 W
🔌 Input (DC) Specifications
-
Maximum PV Input Voltage: 550 V DC
-
Start-Up Voltage: 120 V DC
-
MPPT Voltage Range: 60–480 V DC
-
Maximum Recommended PV Power:
-
8 kW model: 10 kW
-
10 kW model: 12.5 kW
-
12 kW model: 15 kW
-
-
Number of MPPTs: 2
-
Maximum Input Current per MPPT: 16 A
-
Input Connector Type: MC4
🧊 Mechanical & Environmental Specifications
-
Cooling Method: Natural convection
-
Protection Degree: IP65 (suitable for indoor and outdoor installations)
-
Operating Temperature Range: -25 °C to +60 °C
-
Relative Humidity: 0–100%
-
Dimensions (W × D × H): Approx. 370 × 310 × 130 mm (varies by model)
-
Weight: Approx. 10 kg (varies by model)
🔧 Features & Safety
-
Integrated Battery Management System (BMS): Supports 48 V lithium-ion and lead-acid batteries
-
Grid-Tied Function: Enables peak shaving
-
Parallel Operation: Supports up to 9 units in parallel for capacity expansion up to 108 kW
-
Dual Outputs: Allows for smart load management
-
Communication Interfaces: WiFi and 4G remote monitoring support
-
Local Commissioning: PVkeeper platform for local setup
-
Timing Control: Supports timed charging and output control
Product Attributes
This product does not have any attributes
Call for price inquiryContact us
Description
The Growatt SPE 8000~12000 ES is a series of single-phase hybrid solar inverters designed for residential and small commercial applications. These inverters integrate solar energy conversion, battery storage, and grid interaction into a single unit, offering high flexibility and efficiency.
The series is available in 8 kW, 10 kW, and 12 kW models and is compatible with 48V lithium-ion and lead-acid batteries. Each unit features two MPPT inputs, optimizing energy harvest from solar panels installed in different orientations. The maximum DC input voltage is 550V, with an MPPT operating range of 60–480V.
PV input power and AC output for each model are:
-
SPE 8000 ES: PV up to 10 kW, AC output 8 kW
-
SPE 10000 ES: PV up to 12.5 kW, AC output 10 kW
-
SPE 12000 ES: PV up to 15 kW, AC output 12 kW
The inverter offers up to 96.5% efficiency and supports on-grid, off-grid, and hybrid operation. It also allows parallel operation of up to 9 units, enabling system capacity expansion up to 108 kW.
Smart features include remote monitoring via Wi-Fi and 4G, time-of-use control, and peak shaving, allowing users to optimize solar energy usage and access backup power during grid outages.
Overall, the Growatt SPE 8000~12000 ES series is an ideal solution for those seeking a reliable, high-efficiency solar system with scalability and intelligent energy management.
